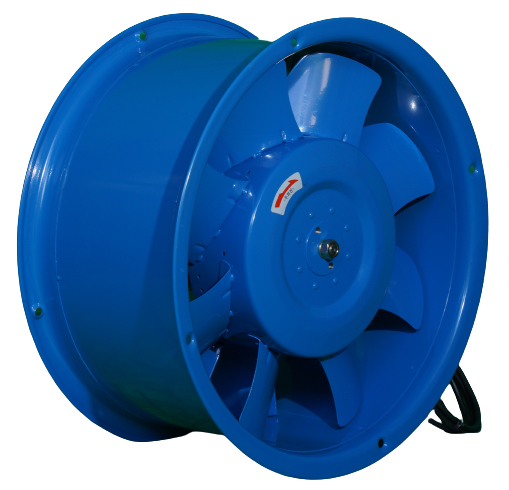

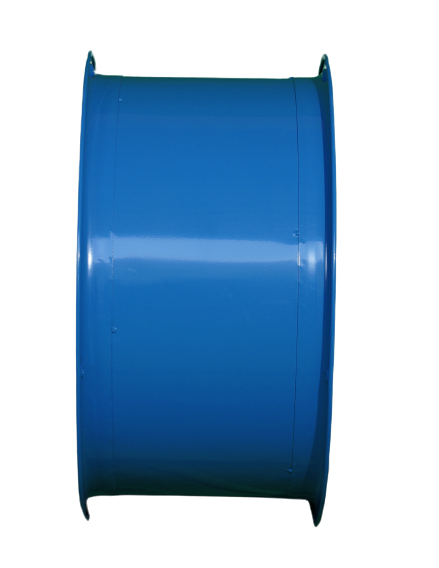

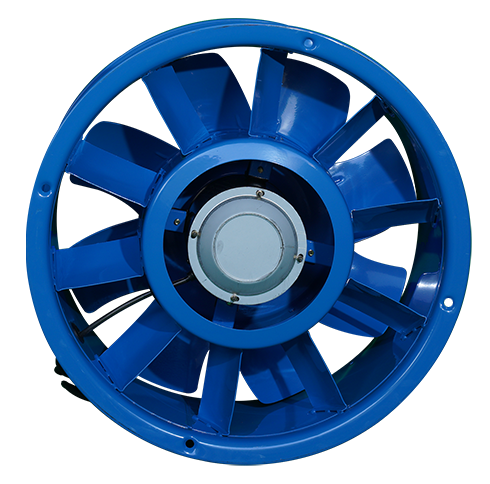

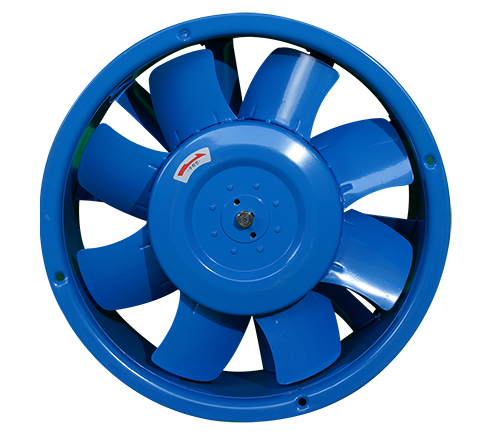

Axial Flow Fan

Axial Flow Fan

For dryer A-TYPE

엠엑스 2023.10.23 18:29:41



Model Motor
(KW)		 Number of poles(P) Number of revolutions
(RPM)		 Wind volume
(㎥/min)		 Static pressure
(mmAq)		 Number of wings
(EA)		 A
(External dimensions)		 B
(outlet)		 C
(Wing outer diameter)		 D
(Length)		 E
(Fixing hole)
SHD-400 0.55 4 1730 60/70 20/15 8 455 400 395 250 425
SHD-460 0.75 4 1730 90/100 20/15 8 525 460 445 285 493
SHD-505 1.01 4 1730 120/130 20/15 8 580 510 495 285 545
SHD-550 1.35 4 1730 145/165 20/15 8 625 550 540 310 585
SHD-610 22 4 1730 185/205 20/15 8 690 610 600 385 660
