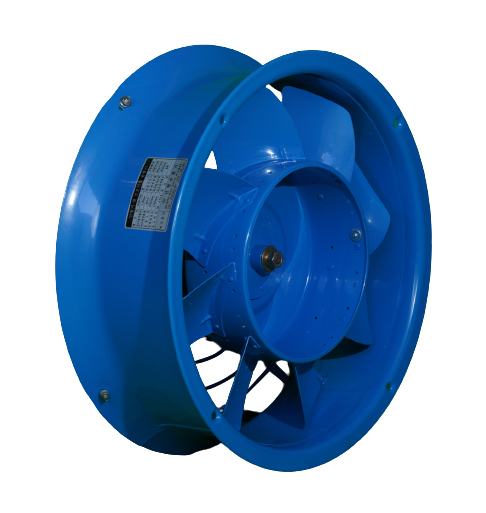

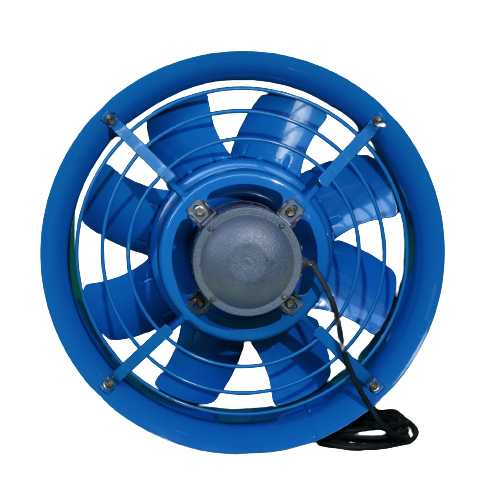

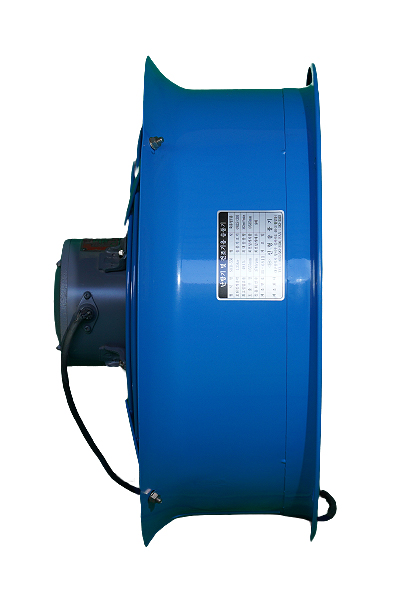

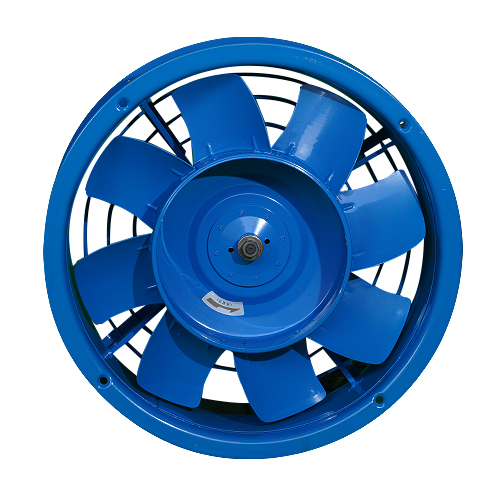

Axial Flow Fan

For heater

엠엑스 2023.11.20 15:36:30

Model	Motor (KW)	Number of poles(P)	Number of revolutions (RPM)	Wind volume (㎥/min)	Static pressure (mmAq)	Number of wings (EA)	A (External dimensions)	B (outlet)	C (Wing outer diameter)	D (Length)	E (Fixing hole)
SHD-300	0.25	4	1730	25/35	20/15	8	360	300	290	210	328
SHD-400	0.25	4	1730	50/60	20/15	8	480	400	390	210	425
SHD-460	0.75	4	1730	90/100	20/15	8	525	460	445	250	493
SHD-505	1.01	4	1730	120/130	20/15	8	580	510	495	275	545
SHD-550	1.5	4	1730	145/165	20/15	8	625	550	540	295	585
SHD-610	2.2	4	1730	185/205	20/15	8	690	610	600	340	660
